Mã sản phẩm: GS-4210-16P2S
Tình trạng: Còn hàng
Thương hiệu: PLANET

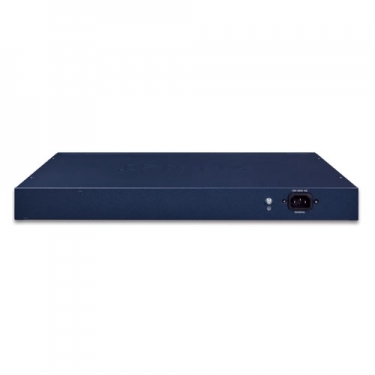

GS-4210-16P2S - Planet Managed Switch
Hỗ trợ kinh doanh
Ms. Lan
Mr Ánh
Ms Mỹ
Mr Liêm
Hỗ trợ kỹ thuật
Mr. Kỳ
Mr Toàn
Mr Hoàng
Mr Công
Liên hệ nhận giá tốt
Thông số kỹ thuật
GS-4210-16P2S - Planet Managed Switch
Hardware Specifications | |
---|---|
Copper Ports | 16 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports |
PoE Injector Port | 16 802.3af/802.3at PoE Injector Ports |
SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Thermal Fan | 2 |
Power Requirements | 100~240V AC, 50/60Hz, 4A (max.) |
Power Consumption/Dissipation | Max. 281 watts/964 BTU |
Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
Weight | 2.8kg |
Enclosure | Metal |
LED | System: Power (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 16): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange) 100/1000Mbps SFP Interfaces (Port 17 to Port 18): 1000 LNK/ACT (Green), 100 LNK/ACT (Orange) |
Switching | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 36Gbps/non-blocking |
Switch Throughput@64 bytes | 26.78Mpps@64 bytes |
MAC Address Table | 8K entries |
Shared Data Buffer | 4Mbits |
Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
Jumbo Frame | 9216 bytes |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
PoE Power Output | Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at) |
PoE Power Budget | 220 watts |
Number of PDs, 7 watts | 16 units |
Number of PDs, 15.4 watts | 14 units |
Number of PDs, 30 watts | 7 units |
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
