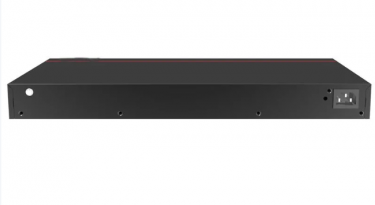

Huawei CloudEngine S3710-H24T4S-A

Tình trạng: Còn hàng

Giá: Liên hệ

Chi tiết: Huawei CloudEngine S3710-H24T4S-A (24*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)

Liên hệ nhận giá tốt

Tùy chọn

Thông số kỹ thuật

Thiết bị chuyển mạch Huawei CloudEngine S3710-H24T4S-A (24*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)

Thông số kỹ thuật Huawei CloudEngine S3710-H24T4S-A

Product ModelCloudEngine S3710-H24P4S-ACloudEngine S3710-H24T4S-ACloudEngine S3710-H48LP4S-ACloudEngine S3710-H48T4S-A
Forwarding Performance42Mpps42Mpps78Mpps 78Mpps
Switching Capacity256Gbps/520Gbps56Gbps/520Gbps104Gbps/520Gbps104Gbps/520Gbps
Fixed Ports24 x 10/100/1000Base-T ports, 4 x GE SFP ports24 x 10/100/1000Base-T ports, 4 x GE SFP ports48 x 10/100/1000Base-T ports, 4 x GE SFP ports48 x 10/100/1000Base-T ports, 4 x GE SFP ports
PoECloudEngine S3710-H24P4S-A:Supported
CloudEngine S3710-H24T4S-A:Not supported
CloudEngine S3710-H48LP4S-A:Supported
CloudEngine S3710-H48T4S-A:Not supported
MAC FeaturesMAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting
VLAN Features4094 VLANs
Voice VLAN
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
ReliabilityLACP, VRRP, BFD
InteroperabilityVBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
