FG-601E

(5/5)

Đánh giá sản phẩm

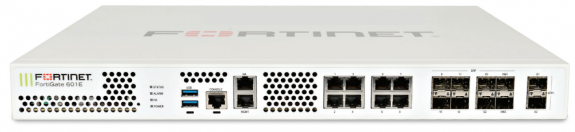

FG-601E Fortinet FortiGate 601E

Tình trạng: Còn hàng

Giá: Liên hệ

Chi tiết: 2 x 10GE SFP+ slots, 10 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 8 x switch ports), 8 x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240GB onboard SSD storage

Liên hệ nhận giá tốt

Tùy chọn

Thông số kỹ thuật

Interfaces and Modules

10 GE SFP+ Slots

2

GE RJ45 Interfaces

8

GE SFP Slots

8

GE RJ45 Management Ports

2

USB Ports

2

RJ45 Console Port

1

Local Storage

2x 240 GB SSD

Included Transceivers

2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix

IPS Throughput

10 Gbps

NGFW Throughput

9.5 Gbps

Threat Protection Throughput

7 Gbps

System Performance and Capacity

IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP)

36 / 36 / 27 Gbps

IPv6 Firewall Throughput
(1518 / 512 / 64 byte, UDP)

36 / 36 / 27 Gbps

Firewall Latency (64 byte, UDP)

2 μs

Firewall Throughput (Packet per Second)

40.5 Mpps

Concurrent Sessions (TCP)

8 Million

New Sessions/Second (TCP)

450,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte)

20 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,000

Client-to-Gateway IPsec VPN Tunnels

50,000

SSL-VPN Throughput

7 Gbps

Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)

5,000

SSL Inspection Throughput (IPS, avg. HTTPS)

8 Gbps

SSL Inspection CPS (IPS, avg. HTTPS)

5,500

SSL Inspection Concurrent Session (IPS, avg. HTTPS)

800,000

Application Control Throughput (HTTP 64K)

15 Gbps

CAPWAP Throughput (HTTP 64K)

18 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

64

Maximum Number of FortiAPs (Total / Tunnel)

1,024 / 512

Maximum Number of FortiTokens

1,000

Maximum Number of Registered Endpoints

2,000

High Availability Configurations

Active-Active, Active-Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

1.75 x 17.0 x 15.0

Height x Width x Length (mm)

44.45 x 432 x 380

Weight

16.6 lbs (7.5 kg)

Form Factor

1 RU

Power Consumption (Average / Maximum)

129 W / 244 W

Power Source

100–240V 60–50Hz

Current (Maximum)

6A @ 100V

Heat Dissipation

832 BTU/h

Redundant Power Supplies (Hot Swappable)

optional

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

59 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
