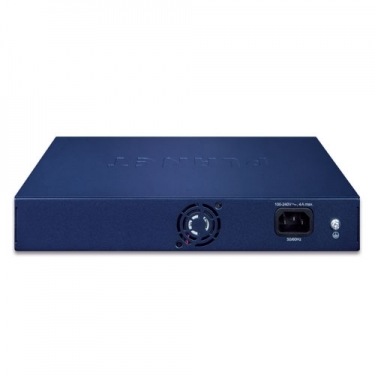

GS-4210-8P2C - Planet Managed Switch
Hỗ trợ kinh doanh
Ms. Lan
Mr Ánh
Ms Mỹ
Mr Liêm
Hỗ trợ kỹ thuật
Mr. Kỳ
Mr Toàn
Mr Hoàng
Mr Công
Liên hệ nhận giá tốt
Thông số kỹ thuật
GS-4210-8P2C - Planet Managed Switch
Hardware Specifications | |
---|---|
Copper Ports | 10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
SFP Ports | 2 x 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM |
PoE Injector Port | 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Dimensions (W x D x H) | 280 x 180 x 44 mm, 1U height |
Weight | 1.7kg |
Enclosure | Metal |
Power Requirements | AC 100~240V, 50/60Hz, 4A, auto-sensing |
Power Consumption/ Dissipation | 154 watts (max.)/525BTU |
ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
Fan | 1 fixed speed Fan |
LED | System: PWR (Green) SYS (Green) Per 10/100/1000T RJ45Ports Port (Port 1 to Port 10): LNK (Green), ACT (Blinks) Per PoE Port (Port 1 to Port 8): PoE-in-use (Amber) Per Gigabit SFP Port (Port 11 to Port 12): LNK (Green), ACT (Blinks) |
Switching Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 24Gbps/non-blocking |
Switch Throughput@64Bytes | 17.85Mpps |
Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 10K bytes |
Power over Ethernet | |
PoE Standard | IEEE 802.3af/802.3at PoE / PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per Port 54V DC, 32 watts (max.) |
Power Pin Assignment | End-span: 1/2 (+), 3/6 (-) |
PoE Power Budget | 120 watts (max.) |
Number of 802.3af PDs | 7 units |
Number of 802.3at PDs | 4 units |
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
