CÔNG TY CỔ PHẦN DỊCH VỤ CÔNG NGHỆ DATECH
Mã sản phẩm: GSW-1820HP
Tình trạng: Còn hàng
Thương hiệu: PLANET

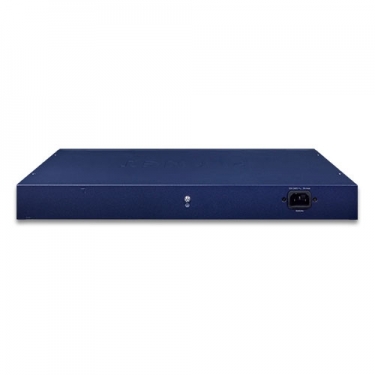

GSW-1820HP - Planet unmanaged Gigabit Ethernet Switch
Hỗ trợ kinh doanh
Ms. Lan
Mr Ánh
Ms Mỹ
Mr Liêm
Hỗ trợ kỹ thuật
Mr. Kỳ
Mr Toàn
Mr Hoàng
Mr Công
Liên hệ nhận giá tốt
Thông số kỹ thuật
Hardware Specifications | |
---|---|
10/100/1000BASE-T Copper Ports | 16 auto-MDI/MDI-X ports |
802.3af/802.3at PoE+ Injector Port | 16 |
1000BASE-X SFP/mini-GBIC Slots | 2 |
DIP Switch | Selectable operation mode
|
Dimensions (W x D x H) | 440 x 208 x 44 mm (1U height) |
Enclosure | Metal |
Weight | 2.67kg |
Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
Power Consumption/Dissipation | Max. 270 watts/921 BTU |
Thermal Fan | 2 |
Protection | 6KV surge protection 8KV ESD protection |
LED Indicators | System Power (Green) 10/100/1000T RJ45 Interfaces 1000 LNK / ACT (Green), 10/100 LNK/ACT (Amber), PoE (Amber) 1000X SFP Interfaces 1000 LNK / ACT (Green) |
Switching | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 36Gbps/non-blocking |
Switch Throughput@64bytes | 26.8Mpps |
MAC Address Table | 8K entries |
Jumbo Frame | 9216 bytes |
Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
Power over Ethernet | |
PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with IEEE 802.3af Power over Ethernet |
PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
PoE Power Output | Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) |
PoE Power Budget | 240 watts |
Number of PDs, 7 watts | 16 |
Number of PDs, 15.4 watts | 15 |
Number of PDs, 30 watts | 8 |
