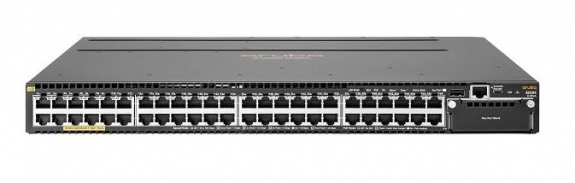

JL429A - HPE Aruba 3810M 48GPoE+4SFP+1050W

Device Type

Switch - 48 ports - L3 - managed - stackable

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE)

PoE+

Performance

Latency (1000Base-T): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Latency (40 Gbps): 1.5 µs ¦ Throughput (64-byte packet size): up to 190.5 Mpps ¦ Routing/switching capacity: 320 Gbps ¦ Switching fabric bandwidth: 338 Gbps

Capacity

IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000

MAC Address Table Size

64K entries

Jumbo Frame Support

Yes

Routing Protocol

OSPF, RIP, RIP-1, RIP-2, BGP, VRRP, OSPFv2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD)

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON

Encryption Algorithm

SSL

Authentication Method

RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

ARP support, Spanning Tree Protocol (STP) support, Per-VLAN Spanning Tree (PVST), Access Control List (ACL) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Uni-Directional Link Detection (UDLD), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Class of Service (CoS), sFlow v5, Type of Service (ToS), OpenFlow support, Internet Control Message Protocol (ICMP)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at

Number of Processors

2

RAM

6 GB DDR3 SDRAM

Flash Memory

1 GB

Expansion / Connectivity

Interfaces

48 x 1000Base-T RJ-45 PoE+ ¦ 1 x serial (console) RJ-45 management ¦ 1 x management RJ-45 ¦ 1 x RJ-45 ¦ 1 x micro-USB Type B

Expansion Slots

1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x Stacking Module slot

Power

Power Device

Internal power supply - hot-plug

Installed Qty

1 (installed) / 2 (max)

Power Redundancy

Yes

Power Redundancy Scheme

1+1 (with optional power supply)

Power Provided

1050 Watt

Voltage Required

DC 54 V

80 PLUS Certification

80 PLUS Silver

ENERGY STAR Certified

Yes

Miscellaneous

Included Accessories

Fan tray

Rack Mounting Kit

Included

Compliant Standards

FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, UL 60950, Laser Class 1, UL 60950-1, EN 60825, IEC 60825, CAN/CSA C22.2 No. 60950, EN 61000-3-2:2006+A1:2009+A2:2009, VCCI Class A, IEC 60825-1:2007, EN 62479:2010, EN55022:2010, EN55024:2010, EN61000-3-3:2008, IEC 60950-1:2005 Second Edition, CSA 22.2 No. 60950-1, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Dimensions

Width

17.4 in

Depth

17 in

Height

1.7 in

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

113 °F

Humidity Range Operating

15 - 95% (non-condensing)

Min Storage Temperature

-40 °F

Max Storage Temperature

158 °F

Humidity Range Storage

15 - 90% (non-condensing)
