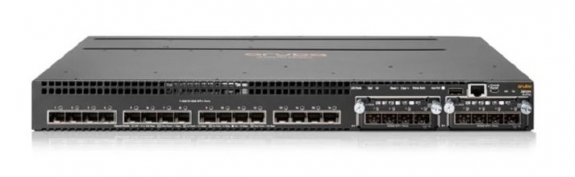

JL430A - HPE 3810M 24SFP+ 250W Switch

Device Type

Switch - 24 ports - managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000

Performance

Routing/switching capacity: 160 Gbps ¦ Switching fabric bandwidth: 169 Gbps ¦ Latency (1 Gbps): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Throughput (64-byte packet size): 95.2 Mpps

Capacity

Routing tables: 10000

MAC Address Table Size

64K entries

Routing Protocol

OSPF, BGP-4, RIP-1, RIP-2, BGP, OSPFv2, OSPFv3

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, SSH-2, XRMON

Encryption Algorithm

SSL

Authentication Method

RADIUS, TACACS+

Features

Flow control, full duplex capability, DHCP support, BOOTP support, VLAN support, Syslog support, DiffServ support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Jumbo Frames support, LLDP support, Link Aggregation Control Protocol (LACP)

Compliant Standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX

Expansion / Connectivity

Interfaces

24 x 1000Base-T RJ-45 ¦ 1 x network stack device ;1 x console RJ-45; 1 x management (LAN) RJ-45 ;1 x micro-USB

Expansion Slots

1 (total) / 1 (free) x expansion slot

Power

Power Device

Internal power supply - hot-plug

Installed Qty

1 (installed) / 2 (max)

Power Redundancy

Yes

Power Redundancy Scheme

1+1 (with optional power supply)

Power Provided

250 Watt

Voltage Required

DC 12 V

Miscellaneous

Compliant Standards

FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 60950, UL 60950, UL 60950-1, EN 60825, CAN/CSA C22.2 No. 60950-1, EN 61000-3-3:2008, CAN/CSA C22.2 No. 60950, EN 61000-3-2:2006+A1:2009+A2:2009, VCCI Class A, EN55022:2010, EN55024:2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2013

Dimensions

Width

17.4 in

Depth

17 in

Height

1.7 in

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

113 °F

Humidity Range Operating

15 - 95% (non-condensing)

Min Storage Temperature

-40 °F

Max Storage Temperature

158 °F

Humidity Range Storage

15 - 90% (non-condensing)
