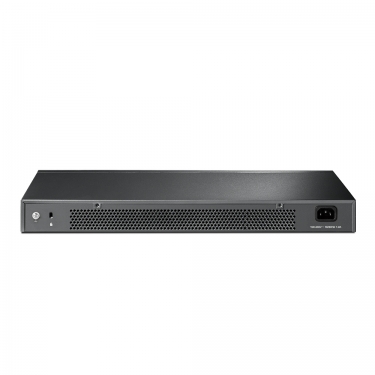

TPlink TL-SG3452 - JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

Mã sản phẩm: TL-SG3452

Tình trạng: Còn hàng

Thương hiệu: TP-LINK

Bộ chia mạng TPlink TL-SG3452 với 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.

Hỗ trợ kinh doanh

Hỗ trợ kỹ thuật

Liên hệ nhận giá tốt

CAM KẾT BÁN HÀNG

Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

Giá Cạnh Tranh Rẻ Nhất Thị Trường

Giao Hàng Trên Toàn Quốc

Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

Ưu Đãi Lớn Cho Đại Lý Và Dự Án

Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

Thông số kỹ thuật

Bộ chia mạng TPlink TL-SG3452 với 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.

TÍNH NĂNG PHẦN CỨNG TL-SG3452
Giao diện• 48× 10/100/1000 Mbps RJ45 Ports
• 4× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Số lượng quạtFanless
Bộ cấp nguồn100-240 V AC~50/60 Hz
Kích thước ( R x D x C )17.3×8.7×1.7 in (440×220×44 mm)
LắpRack Mountable
Tiêu thụ điện tối đa32.8 W (220 V/ 50 Hz)
Max Heat Dissipation111.91 BTU/h (220 V / 50 Hz)
HIỆU SUẤT
Switching Capacity104 Gbps
Tốc độ chuyển gói77.4 Mpps
Bảng địa chỉ MAC16 K
Khung Jumbo9 KB
TÍNH NĂNG PHẦN MỀM
Chất lượng dịch vụ• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
• Bandwidth Control
- Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
- Port-based
- VLAN based
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile
VLAN• VLAN Group
- Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
• Voice VLAN
Access Control List• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL apply to Port/VLAN
Bảo mật• IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
• IP/Port/MAC based access control
• 802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Features• 16 IPv4/IPv6 Interfaces
• Static Routing
- 48 static routes
• Static ARP
• 316 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP L2 Relay
Quản lý• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
Advanced Features• Support Omada Hardware Controller (OC200/OC300), Software Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
KHÁC
Chứng chỉCE, FCC, RoHS
Sản phẩm bao gồm• TL-SG3452 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
Môi trường• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
