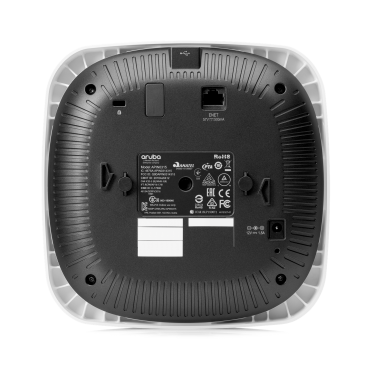

AP15 (R2X06A) Aruba Instant On AP-15 (RW)

Specifications

IN THE BOX

Aruba Instant On AP15 Indoor Access Point
Aruba Instant On AP15 Quick Start guide
Ceiling rail mount clip
Ethernet cable
Solid surface mount clip

RADIOS

Dual radio for simultaneous dual-band operation
5 GHz 802.11ac 4x4 MIMO for up to 1,733 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

INTERFACES

Uplink Gigabit Ethernet port, with POE-in support (802.3af)
DC power connector (12V)
USB host interface (future use)
Bluetooth Low Energy (BLE) radio
LED status indicators (2)
Reset/LED control button
Kensington security slot

PHYSICAL SPECIFICATIONS

Dimensions

183mm x 183mm x 41mm (excluding mount accessories)

Weight

674g

POWER

Power over Ethernet (POE): 802.3af (class 3)
DC power (12V)
Note: Power sources are sold separately

ANTENNAS

Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.6dBi in 2.4GHz and 6.0dBi in 5GHz

MOUNTING

The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling)

COMPLIANCE AND SAFETY

UL2043 plenum rating

ENVIRONMENTAL & RELIABILITY

Operating temperature

0° C to +50° C (+32° F to +122° F)

Humidity

5% to 93% non-condensing

MTBF

916khrs (105yrs) at +25° C

INDUSTRY CERTIFICATIONS

UL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)

MANAGEMENT OPTIONS

Instant On mobile application (Android & iOS)
Cloud Portal: Portal.ArubaInstantOn.com

WARRANTY & SUPPORT

Aruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products
