CÔNG TY CỔ PHẦN DỊCH VỤ CÔNG NGHỆ DATECH
Mã sản phẩm: C1000-24T-4X-L
Tình trạng: Còn hàng
Thương hiệu: CISCO

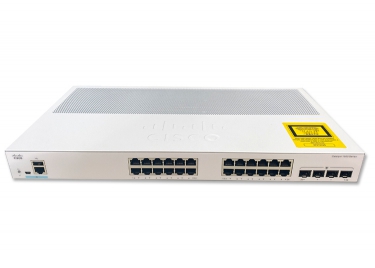

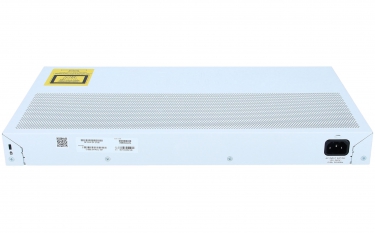

Cisco Catalyst 1000-24T-4X-L - Switch - managed - 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable
Hỗ trợ kinh doanh
Ms. Lan
Ms Mỹ
Mr Liêm
Hỗ trợ kỹ thuật
Mr. Kỳ
Mr Bảng ( CN Sài Gòn )
Mr Toàn
Liên hệ nhận giá tốt
Thông số kỹ thuật
Product Code | C1000-24T-4X-L |
Description | 24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
Gigabit Ethernet ports | 24 |
Uplink interfaces | 4 SFP+ |
PoE+power budget | \ |
Fanless | Y |
Dimensions (WxDxH in inches) | 17.5 x 9.45 x 1.73 |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Forwarding bandwidth | 64 Gbps |
Switching bandwidth | 128 Gbps |
Forwarding rate(64—byte L3 packets) | 41.67 Mpps |
Product Code | C1000-24FP-4G-L | C1000-24P-4G-L | C1000-24T-4G-L | C1000-24FP-4X-L | C1000-24P-4X-L | C1000-24T-4X-L |
Description | 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 1G SFP uplinks | 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks | 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks | 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks | 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 10G SFP+ uplinks | 24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
Gigabit Ethernet ports | 24 | 24 | 24 | 24 | 24 | 24 |
Uplink interfaces | 4 SFP | 4 SFP | 4 SFP | 4 SFP+ | 4 SFP+ | 4 SFP+ |
PoE+power budget | 370W | 195W | \ | 370W | 195W | \ |
Fanless | N | Y | Y | N | Y | Y |
Dimensions (WxDxH in inches) | 17.5 x 13.59 x 1.73 | 17.5 x 11.76 x 1.73 | 17.5 x 9.45 x 1.73 | 17.5 x 13.59 x 1.73 | 17.5 x 11.76 x 1.73 | 17.5 x 9.45 x 1.73 |
CPU | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz |
DRAM | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
Flash memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
Forwarding bandwidth | 28 Gbps | 28 Gbps | 28 Gbps | 64 Gbps | 64 Gbps | 64 Gbps |
Switching bandwidth | 56 Gbps | 56 Gbps | 56 Gbps | 128 Gbps | 128 Gbps | 128 Gbps |
Forwarding rate(64—byte L3 packets) | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps |
