Mã sản phẩm: GS-4210-24P4C / GS-4210-24PL4C
Tình trạng: Còn hàng
Thương hiệu: PLANET

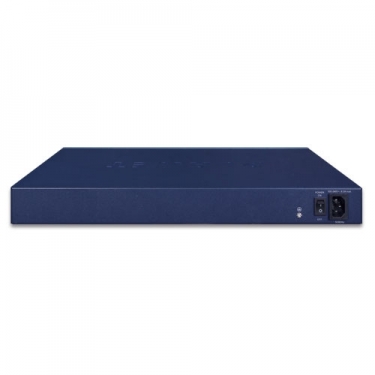

24-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch
Hỗ trợ kinh doanh
Ms. Lan
Ms Mỹ
Mr Liêm
Hỗ trợ kỹ thuật
Mr. Kỳ
Mr Bảng ( CN Sài Gòn )
Mr Toàn
Liên hệ nhận giá tốt
Thông số kỹ thuật
24-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch
Hardware Specifications | |
---|---|
Copper Ports | 28 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | 4 x 100/1000BASE-X SFP interfaces with Port-25 to Port-28. Supports 100/1000Mbps dual mode and DDM |
PoE Injector Port | 24 ports with 802.3at/af PoE injector function with Port-1 to Port-24 |
Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 19-inch, 1U height |
Weight | GS-4210-24P4C: 4.2kg GS-4210-24PL4C: 4.8kg |
ESD Protection | Contact Discharge 4KV DC Air Discharge 8KV DC |
Enclosure | Metal |
Power Requirements | AC 100~240V, 50/60Hz, auto-sensing |
Power Consumption / Dissipation | GS-4210-24P4C: 288 watts (max.)/982 BTU GS-4210-24PL4C: 520 watts (max.)/1774 BTU |
Fan | 3 smart fans |
LED | System: PWR x1(Green) SYS x1 (Green) Per PoE Port (Port 1 to Port 24): LNK/ACT x1 (Green) PoE-in-use x1 (Orange) Per Gigabit RJ45 Port (Port 25 to Port 28): 1000 LNK/ACT x1 (Green) 10/100 LNK/ACT x1 (Orange) Per Gigabit SFP Port (Port 25 to Port 28): 1000 LNK/ACT x1 (Green) 100 LNK/ACT x1 (Orange) |
Switching | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 56Gbps/non-blocking |
Switch Throughput@64Bytes | 41.67Mpps |
Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 10K bytes |
Power over Ethernet | |
PoE Standard | IEEE 802.3af/802.3at PoE/PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per Port 54V DC, 36 watts (max.) |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | GS-4210-24P4C: 220 watts (max.) @ 25 degrees C 190 watts (max.) @ 50 degrees C GS-4210-24PL4C: 440 watts (max.) @ 25 degrees C 380 watts (max.) @ 50 degrees C |
Number of 802.3af PDs | GS-4210-24P4C: 17 units GS-4210-24PL4C: 24 units |
Number of 802.3at PDs | GS-4210-24P4C: 8 units GS-4210-24PL4C: 17 units |
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
