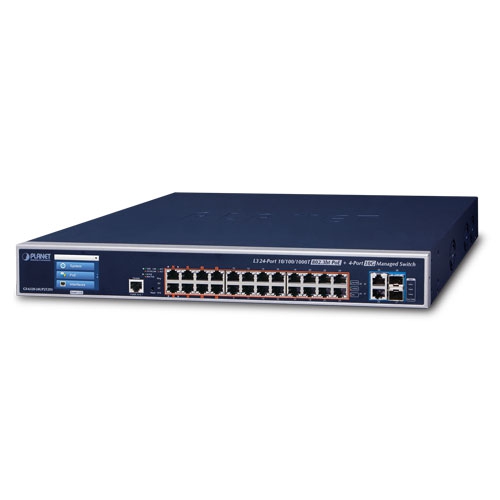

Mã sản phẩm: GS-6320-24UP2T2XV
Tình trạng: Còn hàng
Thương hiệu: PLANET
L3 24-Port 10/100/1000T 802.3bt PoE + 2-Port 10GBASE-T + 2-Port 10G SFP+ Managed Switch with LCD Touch Screen and Redundant Power
Hỗ trợ kinh doanh
Ms. Lan
Mr Ánh
Ms Mỹ
Mr Liêm
Ms.Thương
Ms.Vân Anh
Hỗ trợ kỹ thuật
Mr. Kỳ
Mr Hoàng
Mr Công
Ms.Oanh
Liên hệ nhận giá tốt
CAM KẾT BÁN HÀNG
Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ
Giá Cạnh Tranh Rẻ Nhất Thị Trường
Giao Hàng Trên Toàn Quốc
Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình
Ưu Đãi Lớn Cho Đại Lý Và Dự Án
Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.
Thông số kỹ thuật
L3 24-Port 10/100/1000T 802.3bt PoE + 2-Port 10GBASE-T + 2-Port 10G SFP+ Managed Switch with LCD Touch Screen and Redundant Power
| Hardware Specifications | |
|---|---|
| Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports 2 10GBASE-T RJ45 ports auto negotiation (Port-25 to Port-26), supports 10G/5G/2.5G/1G/100Mbps data rate |
| SFP+ Slots | 2 10GBASE-SR/LR SFP+ interfaces (Port-27 to Port-28) Compatible with 1000BASE-SX/LX/BX SFP transceiver and 2500BASE-XSFP transceiver |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 440x300x56mm, 1.25U height |
| Weight | 5478g |
| LED | System: SYS (Green) AC (Green) DC (Green) Ring (Green) Fan1/2/3 Alert (Red) PoE PWR Alert (Red) PoE Ethernet Interfaces (Port-1 to Port-24): af/at PoE (Orange) bt PoE/UPOE (Green) Ethernet Interfaces (Port-1 to Port-24): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) 1/10G SFP+ Interfaces (Port-27 to Port-28): 1G (Green), 10G (Orange) |
| Power Consumption | Max. 740 watts/ 2538.94 BTU |
| Power Requirements – AC | AC 100~240V, 50/60Hz, 8A |
| Power Requirements – DC | DC 36~60V, 2A |
| ESD Protection | 6KV DC |
| Fan | 3 smart fans |
| Network Cables | 10G/5G/2.5G/1G/100M BASE-T: - 10G – Cat 6A/7 - 5G – Cat 6/6A/7 - 1G/2.5G – Cat 5e/6/6A/7 - 100M – Cat 5/5e/6/6A/7 - Cat 5/5e/6/6A/7 UTP cable (maximum 100 meters) 10GBASE-LR/SR/BX: - 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m - 9/125μm single-mode fiber optic cable, up to 60km |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 128Gbps/non-blocking |
| Throughput | 95.23Mpps@64Bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 32M bits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Power over Ethernet | |
| PoE Standard | 802.3bt PoE++ PSE Backward compatible with IEEE 802.3af/802.3at PoE PSE |
| PoE Power Supply Type | ■ 802.3bt ■ UPoE ■ End-span ■ Mid-span ■ Force |
| PoE Power Output | Per port 52V DC - 802.3bt Type-4 mode, Port-1 to Port-8: maximum 90 watts - 802.3bt Type-3 mode, Port-9 to Port-24: maximum 60 watts - UPoE mode, Port-1 to Port-8: maximum 95 watts - UPoE-mode, Port-9 to Port-24: maximum 72 watts - End-span mode: maximum 36 watts - Mid-span mode: maximum 36 watts - Force mode: maximum 60 watts |
| Power Pin Assignment | ■ 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) ■ UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) ■ End-span: 1/2(-), 3/6(+) ■ Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget | 600 watts (max.) |
| PoE Ability PD @ 7 watts | 24 units |
| PoE Ability PD @ 15 watts | 20 units |
| PoE Ability PD @ 30 watts | 10 units |
| Layer 2 Management Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk 26 trunk groups with 4 ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet |
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups IPv44 IGMP querier mode support |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 255 multicast groups IPv6 MLD querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
| RING | Support ERPS, complies with ITU-T G.8032 Recovery time < 50ms |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries |
| Routing Protocols | IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing |
| Management | |
| Basic Management Interfaces | Console Telnet Web browser SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB |
