| Item | Specification |
| Forwarding performance | 18 Mpps |
| Switching capacity | 336 Gbps |
| Maximum power consumption [W] | 29.7 W |
| Maximum heat dissipation [BTU/hour] | 89.74 BTU/hour |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules) |
| -5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) | |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| The switch cannot be started when the ambient temperature is lower than 0°C (32°F). | |
| The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used. | |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Maximum input current [A] | 0.8 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.1 in.) |
| Chassis height [U] | 1 U |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |

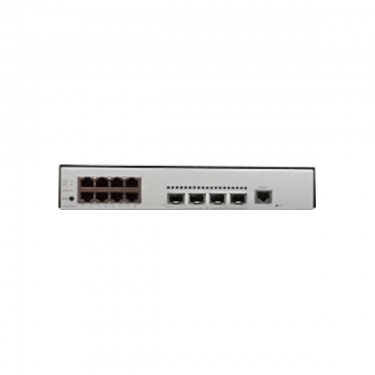

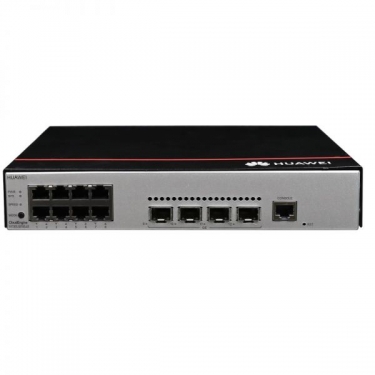

Huawei FutureMatrix S1730S-S8T4S-A1 switch with 8-port 1000BASE-T, 4-port 1000BASE-X
With 1 AC power fixed
Non-PoE
Forwarding performance: 18 Mpps
Switching capacity: 336 Gbps
FutureMatrix S1730S-S series switches are web managed Ethernet switches for the SOHO office market. FutureMatrix S1730S-S series switches provide 8, 24 and 48 port models, with 4 gigabit or 10 gigabit uplink ports. It supports basic Layer 3 routing protocols, has rich business processing capabilities, and provides flexible models.
