CS-KITPLUS-K9 - Cisco Webex Room Kit Plus

Mã sản phẩm: CS-KITPLUS-K9

Tình trạng: Còn hàng

Thương hiệu: CISCO

CS-KITPLUS-K9 - Cisco Webex Room Kit Plus

Hỗ trợ kinh doanh

Hỗ trợ kỹ thuật

Liên hệ nhận giá tốt

CAM KẾT BÁN HÀNG

Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

Giá Cạnh Tranh Rẻ Nhất Thị Trường

Giao Hàng Trên Toàn Quốc

Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

Ưu Đãi Lớn Cho Đại Lý Và Dự Án

Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

Thông số kỹ thuật

Thiết bị hội nghị truyền hình Cisco CS-KITPLUS-K9 - Cisco Webex Room Kit Plus

Specification

Description

Software compatibility

●  Cisco Collaboration Endpoint Software Version 9.14.5 or later, or Webex RoomOS

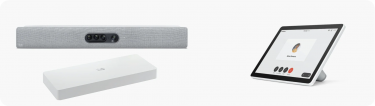

Default components in Webex Room Kit Plus

●  Webex Codec Plus
●  Webex Quad Camera
●  Webex Room Navigator control unit
●  Wall mount for Quad Camera

Available integrator bundles

●  Webex Room Kit Plus PTZ 4K (featuring the Webex PTZ 4K Camera)
●  Webex Room Kit Plus Precision 60 (featuring the Webex Precision 60 Camera)

Optional hardware components

●  Cisco Table Microphone, Cisco Ceiling Microphone, Wall mount for Codec Plus, cables, spare Webex PTZ 4K Camera, spare Webex Precision 60 Camera, spare Cisco TelePresence SpeakerTrack 60 Camera

Bandwidth

●  Up to 6 Mbps point-to-point

Minimum bandwidth for resolution/frame rate

H.264

●  720p30 from 768 kbps
●  720p60 from 1152 kbps
●  1080p30 from 1472 kbps
●  1080p60 from 2560 kbps

Firewall traversal

●  Cisco Expressway  technology
●  H.460.18, H.460.19 firewall traversal

Video standards

●  H.264, H.265, and H.263 for TANDBERG  MXP interoperability only

Video inputs

●  One HDMI input supports formats up to maximum 1080p60
●  Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
●  Extended Display Identification Data (EDID)
●  Consumer Electronics Control (CEC) 2.0

Video outputs

●  Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
●  Consumer Electronics Control (CEC) 2.0

Encode and decode

●  Main video: Full HD 1080p60
●  Presentation channel: UHD 4K 2160p5, including 1080p30 and 720p60

Audio standards

●  G.711, G.722, G.722.1, G.729, AAC-LD, and Opus

Audio features

●  High-quality 20 kHz audio
●  Subwoofer line out for Quad Camera
●  Prepared for inductive loop (line out)
●  Automatic Gain Control (AGC)
●  Automatic noise reduction
●  Active lip synchronization

Audio inputs

●  Three microphones, 4-pin mini-jack
●  Embedded audio on two HDMI inputs

Audio outputs

●  1 line out mini-jack (stereo) (Codec Plus)
●  1 RCA output for subwoofer (Quad Camera)
●  Embedded audio on one HDMI output
●  HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera

Speakers
(Quad Camera)

●  High-quality speakers
●  Frequency response: 70 Hz to 20 kHz
●  Max output level SPL 90dB

Speaker tracking
(Quad Camera, SpeakerTrack 60)

●  6-element microphone array for accurate speaker tracking
●  Quad Camera can support group framing feature with 5x zoom capability
●  SpeakerTrack 60 can support close-up feature with 20x zoom capability

PresenterTrack (available when pairing with PTZ 4K Camera, Precision 60 Camera)

●  AI-powered face and upper body detection capability
●  Camera automatically follows the active presenter within a defined zone and helps ensure optimized view

Dual stream

●  H.239 (H.323) dual stream
●  Binary Floor Control Protocol (BFCP) (SIP) dual stream
●  Support resolutions up to 3840 x 2160p5 (4Kp5),1080p30 and 720p60

Wireless sharing

●  Webex App (up to 3840 x 2160p5)
●  Cisco Intelligent Proximity client (up to 1920 x 1080p5)

MultiSite features
(embedded multipoint)
(optional upgrade)

●  Adaptive SIP/H.323 MultiSite

◦    3-way resolution up to 1080p30 + content up to 4Kp5

◦    4-way resolution up to 720p30 + content up to 4Kp5

●  Full individual audio and video transcoding
●  H.323/SIP/VoIP in the same conference
●  Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
●  Best Impression (automatic continuous presence layouts)
●  Encryption and dual stream from any site

Protocols

●  H.323
●  SIP
●  Webex
●  ISDN PRI/BRI using the optional ISDN Link

Embedded encryption

●  H.323 and SIP point-to-point
●  Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
●  Automatic key generation and exchange

IP network features

●  DNS lookup for service configuration
●  Differentiated services (Quality of Service [QoS])
●  IP-adaptive bandwidth management (including flow control)
●  Automatic gatekeeper discovery
●  Dynamic playout and lip-sync buffering
●  H.245 Dual-Tone Multi-Frequency (DTMF) tones in H.323
●  RFC 4733 DTMF tones in SIP
●  Date and time support using Network Time Protocol (NTP)
●  Uniform Resource Identifier (URI) dialing
●  Dynamic Host Configuration Protocol (DHCP)
●  802.1X network authentication
●  802.1Q Virtual LAN
●  802.1p [QoS and Class of Service (CoS)]
●  Cisco Media Assure and ClearPath, including packet loss-based downspeeding

Call control

●  Cisco Unified Communications Manager (CUCM)

◦    Native registration CUCM

◦    Requires CUCM Version 10.5.2 or later with device pack Room Kit Plus

●  Cisco Expressway

◦    Native registration with Expressway

●  Webex
●  Third-party H.323 Gatekeepers and standards-based SIP proxies

IPv6 network support

●  Single call stack support for both H.323 and SIP
●  Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
●  Support for both static and automatic IP configuration (stateless address auto configuration)

Security features

●  Management using HTTPS and SSH
●  IP administration password
●  Password to access administration features on Webex Room Navigator controller
●  Disable IP services
●  Network settings protection

Certificate management

●  Certificate Authority Proxy Function (CAPF) support for additional security
●  Manufacturer-Installed Certificates (MIC)
●  Locally Significant Certificates (LSC)
●  X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported

Other interfaces

●  USB 2.0 port, uUSB, factory reset pinhole

Network interfaces Codec Plus

●  1 Ethernet (RJ-45) 10/100/1000 for LAN
●  1 Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control)
●  1 Ethernet (RJ-45) 10/100/1000 with PoE, for direct pairing with Webex Room Navigator
●  Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN
●  2x2 multiple input and multiple output (MIMO)

Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz – 5875 MHz.

Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance.

Power supplies (2)

●  100 to 240 VAC, 50/60 Hz, 12V DC input
●  Average 20 W, peak 70W
●  Quad camera must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019

Operating temperature and humidity

●  0°C to 35°C (32°F to 95°F) ambient temperature
●  10% to 90% Relative Humidity (RH)

Storage and transport temperature

●  -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)

Product Name

Part Number

Compliance Model Number

Webex Room Kit Plus – Subscription pricing (MSRP*)

●  Webex Codec Plus
●  Webex Quad Camera
●  Webex Room Navigator Control Unit
●  Webex Service

CS-KITPLUS-MSRP-K9

CS-CODEC-PLUS+

CS-QUADCAM+

CS-T10-TS+

A-SPK-SH-RMK (A-SPK-SH)



TTC7-25

TTC8-10

TTC5-15

Webex Room Kit Plus (GPL**)

●  Webex Codec Plus
●  Webex Quad Camera
●  Webex Room Navigator Control Unit

CS-KITPLUS-K9

CS-CODEC-PLUS+

CS-QUADCAM+

CS-T10-TS+



TTC7-25

TTC8-10

TTC5-15

Webex Room Kit Plus – NO RADIO

●  Webex Codec Plus – NO RADIO
●  Webex Quad Camera
●  Webex Room Navigator Control Unit

CS-KITPLUS-NR-K9

CS-CODEC-PLUS-NR+

CS-QUADCAM+

CS-T10-TS+



TTC7-25

TTC8-10

TTC5-15

Webex Room Kit Plus – NO CRYPTO

●  Webex Codec Plus
●  Webex Quad Camera
●  Webex Room Navigator Control Unit

CS-KITPLUS-K7

CS-CODEC-PL-NR-K7+

CS-QUADCAM+

CS-T10-TS+



TTC7-25

TTC8-10

TTC5-15

Webex Room Kit Plus – TAA compliant

●  Webex Codec Plus – TAA, NO RADIO, or
●  Webex Codec Plus – TAA
●  Webex Quad Camera
●  Webex Room Navigator Control Unit

CS-KITPLUS-K9++

CS-CODEC-PLUS-NR++

CS-CODEC-PLUS++

CS-QUADCAM+

CS-T10-TS+



TTC7-25

TTC7-25

TTC8-10

TTC5-15

Options

Cisco Table Microphone with 3.5mm plug

CS-MIC-TABLE-J=



Extension cable for Table Microphone

CAB-MIC-EXT-J=



Cisco Ceiling Microphone

CTS-MIC-CLNG-G2



Shielded cable for Ceiling Mic (non-plenum rated)

CAB-ETHRSHLD-10M



Wall Mount Kit for Codec Medium

CS-KITPLUS-WMK



8 m HDMI 2.0 certified cable

CAB-PRES-2HDMI-GR



HDMI 2.0 cable 1.5 m/5 ft, gray

CAB-2HDMI-1.5M-GR



HDMI 2.0 cable 3 m/10 ft, gray

CAB-2HDMI-3M-GR



Ethernet cable 1.5 m/5 ft, gray

CAB-ETH-1.5M-GR



Ethernet cable 3 m/10 ft, gray

CAB-ETH-3M-GR



Ethernet cable 5 m/16.4 ft, gray

CAB-ETH-5M-GR



Software options – ordered separately

Remote Monitoring

L-ROOM-RM (L-TP-RM)



MultiSite (embedded multipoint)

L-KITPLUS-MS (L-ROOM-PAK)



Spares

Webex Codec Plus

CS-CODEC-PLUS=

TTC7-25

Webex Codec Plus – no radio, no crypto

CS-CODEC-PL-NR-K7=

TTC7-25

Webex Codec Plus – no radio

CS-CODEC-PLUS-NR=

TTC7-25

Webex Quad Camera

CS-QUADCAM=

TTC8-10

Webex PTZ 4K Camera

CS-CAM-PTZ4K=

EVI-X200C

Webex Precision 60 Camera

CTS-CAM-P60=

TTC8-07

Power supply 12VDC 70W

PSU-12VDC-70W-GR=



* MSRP = Manufacturer’s Suggested Retail Price
** GPL = Global Price List
