DS120J - Synology DiskStation DS120j

CPU

CPU ModelMarvell Armada 3700 88F3720 CPU Quantity1 CPU Architecture64-bit CPU Frequency2-core 800 MHz Hardware Encryption Engine

Memory

System Memory512 MB DDR3L non-ECC NotesSynology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays1 Compatible Drive Type* (See all supported drives)

• 3.5" SATA HDD
• 2.5" SATA HDD (with optional 2.5" Disk Holder)

 Maximum Single Volume Size*108 TB Hot Swappable Drive- Notes"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

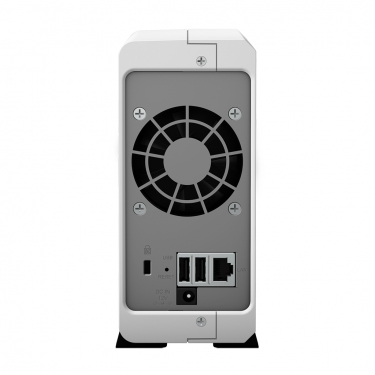

External Ports

RJ-45 1GbE LAN Port1 USB 2.0 Port2

File System

Internal Drives

• EXT4

 External Drives

• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT

 NotesexFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

Size (Height x Width x Depth)166 mm x 71 mm x 224 mm Weight0.7 kg

Others

System Fan60 mm x 60 mm x 1 pcs Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode
• Low-power Mode

 Power Recovery  Noise Level*16.9 dB(A) Scheduled Power On / Off  Wake on LAN / WAN  Power Supply Unit / Adapter36 W AC Input Power Voltage100 V to 240 V AC Power Frequency50/60 Hz, Single Phase Power Consumption*9.81 W (Access)
4.68 W (HDD Hibernation) British Thermal Unit33.47 BTU/hr (Access)
15.97 BTU/hr (HDD Hibernation) Notes

• Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature0°C to 40°C (32°F to 104°F) Storage Temperature-20°C to 60°C (-5°F to 140°F) Relative Humidity5% to 95% RH

Certification

• EAC
• CCC
• KC
• FCC
• CE
• BSMI
• VCCI
• RCM

Warranty

2 Years NotesThe warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

RoHS Compliant

Packaging Content

• Main Unit X 1
• Accessory Pack X 1
• AC Power Adapter X 1
• RJ-45 LAN Cable X 1
• Quick Installation Guide X 1

Optional Accessories

• VisualStation: VS360HD
• Surveillance Device License Pack
• Disk Holder: Type C
