Mã sản phẩm: GS-5220-16T2XV/GS-5220-16T2XVR
Tình trạng: Còn hàng
Thương hiệu: PLANET

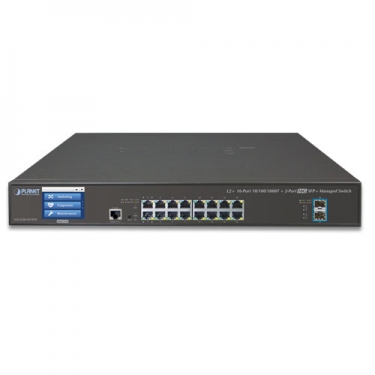

GS-5220-16T2XV/GS-5220-16T2XVR - Planet L2+ 16-Port 10/100/1000T + 2-Port 10G SFP+ Managed Switch with LCD touch screen
Hỗ trợ kinh doanh
Ms. Lan
Ms Mỹ
Mr Liêm
Hỗ trợ kỹ thuật
Mr. Kỳ
Mr Bảng ( CN Sài Gòn )
Mr Toàn
Liên hệ nhận giá tốt
Thông số kỹ thuật
GS-5220-16T2XV/GS-5220-16T2XVR - Planet L2+ 16-Port 10/100/1000T + 2-Port 10G SFP+ Managed Switch with LCD touch screen
Hardware Specifications | |||||||
---|---|---|---|---|---|---|---|
Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports | ||||||
SFP+ Slots | 2 10GBASE-SR/LR SFP+ interfaces (Port-17 to Port-18) Compatible with 1000BASE-SX/LX/BX SFP transceiver | ||||||
Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) | ||||||
Switch Architecture | Store-and-Forward | ||||||
Switch Fabric | 72Gbps/non-blocking | ||||||
Throughput | 53.57Mpps@64Bytes | ||||||
Address Table | 16K entries, automatic source address learning and aging | ||||||
Shared Data Buffer | 32M bits | ||||||
Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex | ||||||
Jumbo Frame | 10K bytes | ||||||
Reset Button | < 5 sec: System reboot > 5 sec: Factory default | ||||||
Dimensions (W x D x H) | 440 x 300 x 56 mm, 1.25U height | ||||||
Weight | 3.5kg | ||||||
LED | System: SYS (Green) AC/PWR (Green) DC (Green) (GS-5220-16T2XVR Only) Ring (Green) Ethernet Interfaces (Port-1 to Port-16): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) 1/10G SFP+ Interfaces (Port-17 to Port-18): 1G (Green), 10G (Orange) | ||||||
Power Consumption |
| ||||||
Power Requirements |
| ||||||
ESD Protection | 6KV DC | ||||||
Fan | 1 | ||||||
Layer 2 Management Functions | |||||||
Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable | ||||||
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status | ||||||
Port Mirroring | TX/RX/Both Many-to-1 monitor | ||||||
VLAN | 802.1Q tagged-based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 255 VLAN groups, out of 4095 VLAN IDs | ||||||
Link Aggregation | IEEE 802.3ad LACP/static trunk 9 groups with 2 port per trunk | ||||||
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) | ||||||
QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet | ||||||
IGMP Snooping | IGMP (v1/v2/v3) snooping, up to 255 multicast groups IGMP querier mode support | ||||||
MLD Snooping | MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support | ||||||
Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries | ||||||
Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps | ||||||
Layer 3 Functions | |||||||
IP Interfaces | Max. 128 VLAN interfaces | ||||||
Routing Table | Max. 128 routing entries | ||||||
Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing |
