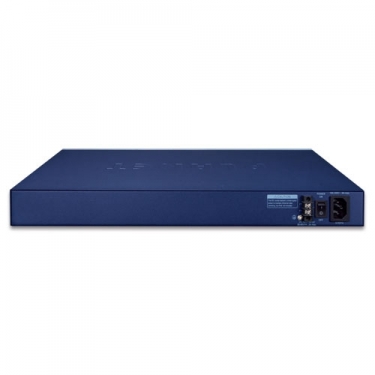

GS-5220-16UP4S2XR - Planet L3 16-Port 10/100/1000T 802.3bt PoE +

Mã sản phẩm: GS-5220-16UP4S2XR

Tình trạng: Còn hàng

Thương hiệu: PLANET

GS-5220-16UP4S2XR - Planet L3 16-Port 10/100/1000T 802.3bt PoE +

Hỗ trợ kinh doanh

Hỗ trợ kỹ thuật

Liên hệ nhận giá tốt

CAM KẾT BÁN HÀNG

Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

Giá Cạnh Tranh Rẻ Nhất Thị Trường

Giao Hàng Trên Toàn Quốc

Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

Ưu Đãi Lớn Cho Đại Lý Và Dự Án

Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

Thông số kỹ thuật

GS-5220-16UP4S2XR - Planet L3 16-Port 10/100/1000T 802.3bt PoE +

Hardware Specifications
Copper Ports16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Slots4 100/1000BASE-X SFP interfaces,
Compatible with 100BASE-FX SFP transceiver
SFP+ Slots2 10GBASE-SR/LR SFP+ interfaces (Port-17 to Port-18)
Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
Console1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Dimension (W x D x H)440 x 300 x 44.5 mm, 1U height
Weight4,503g
Power ConsumptionAC: Max. 439.4 watts/1498.3 BTU (include PoE)
DC: Max. 31.9 watts/108.7 BTU (system only)
Power Requirements – ACAC 100~240V, 50/60Hz, 7A
Power Requirements – DCDC 36~60V, 2A
ESD Protection6KV DC
Fan3 smart fans
LEDSystem:
SYS (Green)
AC/PWR (Green)
DC (Green) (GS-5220-16UP4S2XVR Only)
Ring (Green)
Fan1/2/3 Alert (Red)
PoE PWR Alert (Red)
PoE Ethernet Interfaces (Port-1 to Port-16):
bt PoE (Green) , af/at PoE (Orange)
Ethernet Interfaces (Port-1 to Port-16):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
100/1000Mbps SFP Interfaces (Port-17 to Port-20):
1000 (Green), 100 (Orange)
1/10G SFP+ Interfaces (Port-21 to Port-22):
1G (Green), 10G (Orange)
Switching
Switch ArchitectureStore-and-Forward
Switch Fabric80Gbps/non-blocking
Throughput59.52Mpps@64Bytes
Address Table16K entries, automatic source address learning and aging
Shared Data Buffer32M bits
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame10K bytes
Power over Ethernet
PoE Standard802.3bt PoE++ PSE Type-4 and Type-4 PSE
Backward compatible with IEEE 802.3af/802.3at PoE PSE
PoE Power Supply Type802.3bt PoE++
UPoE
End-span
Mid-span
Force
PoE Power OutputPer port 52~54V DC
 802.3bt Type-4 mode, Port-1 to Port-8: maximum 90 watts
 802.3bt Type-3 mode, Port-9 to Port-24: maximum 60 watts
 UPoE mode, Port-1 to Port-8: maximum 95 watts
 UPoE-mode, Port-9 to Port-24: maximum 72 watts
 End-span mode: maximum 36 watts
 Mid-span mode: maximum 36 watts
 Force mode: maximum 60 watts
Power Pin Assignment802.3bt : 1/2(-), 3/6(+),4/5(+), 7/8(-)
UPoE : 1/2(-), 3/6(+),4/5(+), 7/8(-)
End-span : 1/2(-), 3/6(+)
Mid-span : 4/5(+), 7/8(-)
PoE Power Budget400 watts (max.)
PoE Ability PD @ 15 watts16 units
PoE Ability PD @ 30 watts13 units
PoE Ability PD @ 60 watts6 units
