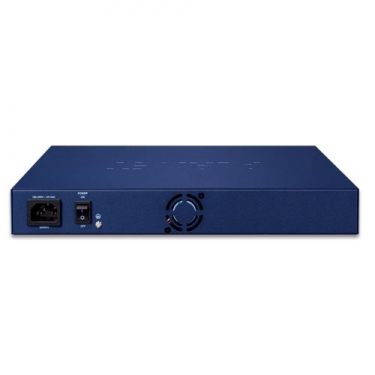

GS-5220-8UP2T2X - Planet L3 8-Port 10/100/1000T 802.3bt PoE +

Mã sản phẩm: GS-5220-8UP2T2X

Tình trạng: Còn hàng

Thương hiệu: PLANET

GS-5220-8UP2T2X - Planet L3 8-Port 10/100/1000T 802.3bt PoE +

Hỗ trợ kinh doanh

Hỗ trợ kỹ thuật

Liên hệ nhận giá tốt

CAM KẾT BÁN HÀNG

Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

Giá Cạnh Tranh Rẻ Nhất Thị Trường

Giao Hàng Trên Toàn Quốc

Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

Ưu Đãi Lớn Cho Đại Lý Và Dự Án

Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

Thông số kỹ thuật

GS-5220-8UP2T2X - Planet L3 8-Port 10/100/1000T 802.3bt PoE +

Hardware Specifications
Copper Ports10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X interface with Port-1 to Port-10
SFP/mini-GBIC Slots2 x 1G/2.5G/10G BASE-X SFP interfaces with Port-11 to Port-12
PoE Injector Port8 ports with 802.3bt/at/af PoE injector function with Port-1 to Port-8
Console1 x RJ45 serial port (115200 , 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Power Requirements100~240V AC, 50/60Hz
Power Consumption (Full Loading)284 watts/969BTU (max.)
ESD Protection6KV DC
Dimensions (W x D x H)330 x 200 x 43.5 mm, 1U height
Weight2.1kg
LEDSystem:
Ring (Green), R.O (Green), SYS (Green), PWR ((Green)
10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 10):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Orange)
802.3bt PoE-in-Use (Green) (Port 1 to Port 8)
802.3at/af PoE-in-Use (Orange) (Port 1 to Port 8)
1G/2.5G/10G Mbps SFP Interfaces (Port 11 to Port 12):
1G/2.5G LNK/ACT (Green)
10G Mbps (Orange)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric60Gbps/non-blocking
Throughput44.642Mpps@ 64Bytes packet
Address Table16K entries, automatic source address learning and aging
Shared Data Buffer16Mbits
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame9KB
Power over Ethernet
PoE Standard802.3bt PoE++ PSE
Backward compatible with IEEE 802.3at PoE PSE
PoE Power Supply Type802.3bt
UPoE
End-span
Mid-span
Force
PoE Power OutputPer port 52V DC
802.3bt mode, Port-1 to Port-8: maximum 90 watts
UPoE mode, Port-1 to Port-8: maximum 95 watts
Force mode, Port-1 to Port-8: maximum 60 watts
End-span mode: maximum 36 watts
Mid-span mode: maximum 36 watts
Power Pin Assignment802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
PoE Power Budget240 watts (max.) @ 25 degrees C
200 watts (max.) @ 50 degrees C
Number of 90W 802.3bt Type-4 PDs2
Number of 60W 802.3bt Type-3 PDs4
Number of 802.3at PDs8
