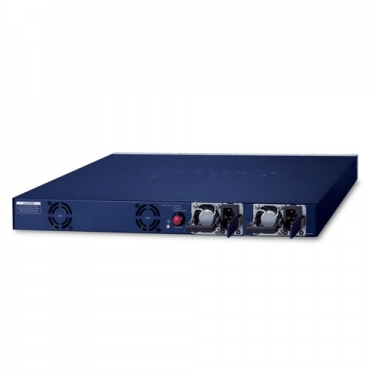

GS-6322-24P4X - Planet L3 24-Port 10/100/1000T 802.3bt PoE +

Mã sản phẩm: GS-6322-24P4X

Tình trạng: Còn hàng

Thương hiệu: PLANET

L3 24-Port 10/100/1000T 802.3bt PoE + 2-Port 10GBASE-T + 2-Port 10G SFP+ Managed Switch with Dual Modular Power Supply Slots

Hỗ trợ kinh doanh

Hỗ trợ kỹ thuật

Liên hệ nhận giá tốt

CAM KẾT BÁN HÀNG

Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

Giá Cạnh Tranh Rẻ Nhất Thị Trường

Giao Hàng Trên Toàn Quốc

Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

Ưu Đãi Lớn Cho Đại Lý Và Dự Án

Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

Thông số kỹ thuật

L3 24-Port 10/100/1000T 802.3bt PoE + 2-Port 10GBASE-T + 2-Port 10G SFP+ Managed Switch with Dual Modular Power Supply Slots

Hardware Specifications
Copper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
2-port 10GBASE-T RJ45 auto negotiation (Port-25 to Port-26), supports 10G/5G/2.5G/1G/100Mbps data rate
SFP+ Slots2 10GBASE-SR/LR SFP+ interfaces (Port-27 to Port-28) Compatible with 1000BASE-SX/LX/BX SFP and 2.5G SFP transceiver
Console1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H)440x300x44mm, 1U height
Weight5478g
Power RequirementsSingle 2000W PSU: AC 100~240V, 50/60Hz, 13A
Dual 2000W PSUs: AC 100~240V, 50/60Hz, 26A
Power ConsumptionSingle PSU: Max. 2032 watts/ 6933 BTU
Dual PSUs in EPS mode: Max. 2377 watts/ 8111 BTU
ESD Protection6KV DC
Fan2 smart fans
LEDSystem:
 SYS (Green)
 PWR1 (Green)
 PWR2 (Green)
 Ring (Green)
 Fan1/2/3 Alert (Red)
 PoE PWR Alert (Red)
PoE Ethernet Interfaces (Port-1 to Port-24):
 af/at PoE (Orange)
 bt PoE/UPOE (Green)
Ethernet Interfaces (Port-1 to Port-24):
 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
 1/10G SFP+ Interfaces (Port-27 to Port-28):
 1G (Green), 10G (Orange)
Network Cables10G/5G/2.5G/1G/100M BASE-T:
 -10G – Cat 6A/7
 -5G – Cat 6/6A/7
 -1G/2.5G – Cat 5e/6/6A/7
 -100M – Cat 5/5e/6/6A/7
 -Cat 5/5e/6/6A/7 UTP cable (maximum 100 meters)
10GBASE-LR/SR/BX:
 -50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m
 -9/125μm single-mode fiber optic cable, up to 60km
Switching
Switch ArchitectureStore-and-Forward
Switch Fabric128Gbps/non-blocking
Throughput95.23Mpps@64Bytes
Address Table16K entries, automatic source address learning and aging
Shared Data Buffer32M bits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame10K bytes
Power over Ethernet
PoE Standard802.3bt PoE++ PSE
Backward compatible with IEEE 802.3af/802.3at PoE PSE
PoE Power Supply Type802.3bt
UPoE
End-span
Mid-span
Force
PoE Power OutputPer port 54V DC
 -802.3bt Type-4 mode, Port-1 to Port-24: maximum 90 watts
 -UPoE mode, Port-1 to Port-24: maximum 95 watts
 -End-span mode: maximum 36 watts
 -Mid-span mode: maximum 36 watts
 -Force mode: maximum 60 watts
Power Pin Assignment802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
PoE Power Budgetup to 2280 watt
