S5735-L16T4S-A-V2
Đánh giá sản phẩm
Tình trạng: Còn hàng
Giá: Liên hệ
Chi tiết: Huawei CloudEngine S5735-L16T4S-A-V2 (16*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)
Liên hệ nhận giá tốtTùy chọn
Thông số kỹ thuật

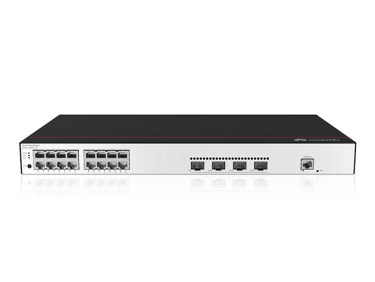

Thiết bị chuyển mạch Huawei CloudEngine S5735-L16T4S-A-V2 (16*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)
Mô tả Huawei CloudEngine S5735-L16T4S-A-V2
1 | One MODE button | 2 | Sixteen 10/100/1000BASE-T ports |
3 | Four 1000BASE-X ports | 4 | One console port |
5 | One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. | 6 | Ground screw NOTE: It is used with a ground cable. |
7 | Jack for AC power cable locking strap NOTE: The AC power cable locking strap is not delivered with the switch. | 8 | AC socket NOTE: It is used with an AC power cable. |
Thông số kỹ thuật Huawei CloudEngine S5735-L16T4S-A-V2
Product Model | CloudEngine S5735-L8T4S-A-V2 CloudEngine S5735-L8P4S-A-V2 | CloudEngine S5735-L16T4S-A-V2 | CloudEngine S5735-L24T4S-A-V2 CloudEngine S5735-L24P4S-A-V2 | CloudEngine S5735-L48T4S-A-V2 | CloudEngine S5735-L48LP4S-A-V2 |
Forwarding Performance | 18Mpps | 30Mpps | 51Mpps | 78Mpps | 78Mpps |
Switching Capacity2 | 24Gbps/520Gbps | 40Gbps/520Gbps | 56Gbps/520Gbps | 56Gbps/520Gbps | 104Gbps/520Gbps |
Fixed Ports | 8 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 8 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
PoE | CloudEngine S5735-L8P4S-A-V2:Supported CloudEngine S5735-L24P4S-A-V2:Supported CloudEngine S5735-L48LP4S-A-V2:Supported Other models:Not supported | ||||
MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting | ||||
VLAN Features | 4094 VLANs Voice VLAN MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | ||||
IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3 | ||||
Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports, click HERE. |
