| Specification | |
| Downlink Ports | 8×10/100/1000Base-T ports |
| Uplink Ports | 2xGE SFP |
| MAC Address Table | 16K MAC |
| Dimensions (W x D x H) | 320 mm x 220 mm x 43.6 mm |
| Input Voltage | 100V-240V AC，
50~60Hz |
| EEE | Supported |
| Power Consumption | PoE model：
− Non PoE：14.63W − PoE：159.2W（PoE：123.2W） |
| Operating Temperature | 0°C to 45°C |
| Humidity (non-condensing) | 5% to 95% |
| Heat Dissipation | Fan-free natural heat dissipation |

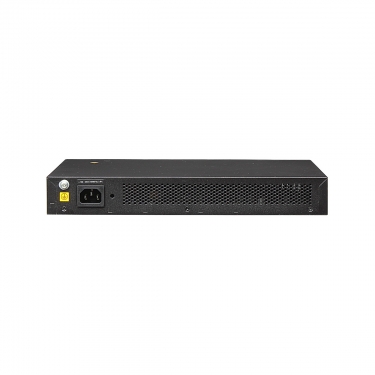

Huawei S1720-10GF-PWR-2P switch with 8-ports 1000BASE-T POE+, 2-ports GE SFP
With 1 AC power fixed
No extension slots
Forwarding perfomance: 15Mpps
Switching capacity : 68Gbps
16K MAC address entries
POE Switch
Huawei’s S1700 series enterprise switches (S1700) are next-generation energy-saving Ethernet access switches. The S1700 uses high-performance hardware, which offers a wide array of features to help customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain, and is ideal for small-sized and medium-sized enterprises, Internet cafes, hotels, and schools.
